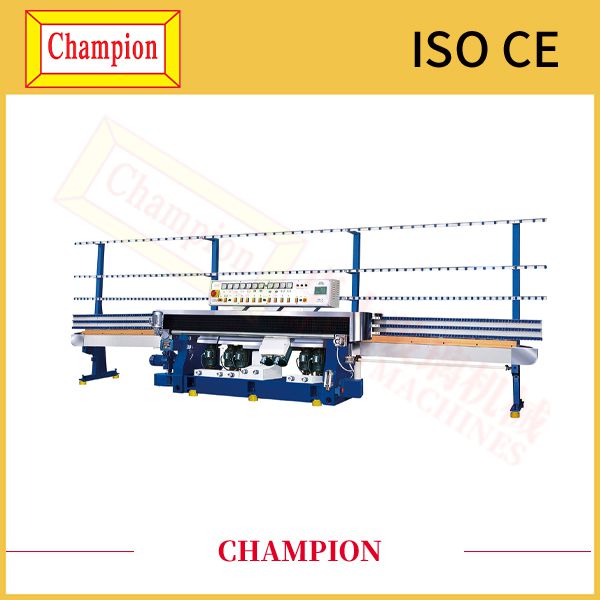

Champion TG252E/TG262E/TG272E GLASS STRAIGHT LINE EDGING MACHINE
Machine Brief Description
This machine equipped with two groups of corner edge polishing wheels, is suitable for grinding and polishing the bottom edge and arris of glass with a rather high precision. The chainless transfer is adopted to ensure stable transfer glass. This machine is controlled by Mitsubishi PLC, and with HMI to display thickness of glass and actual speed.

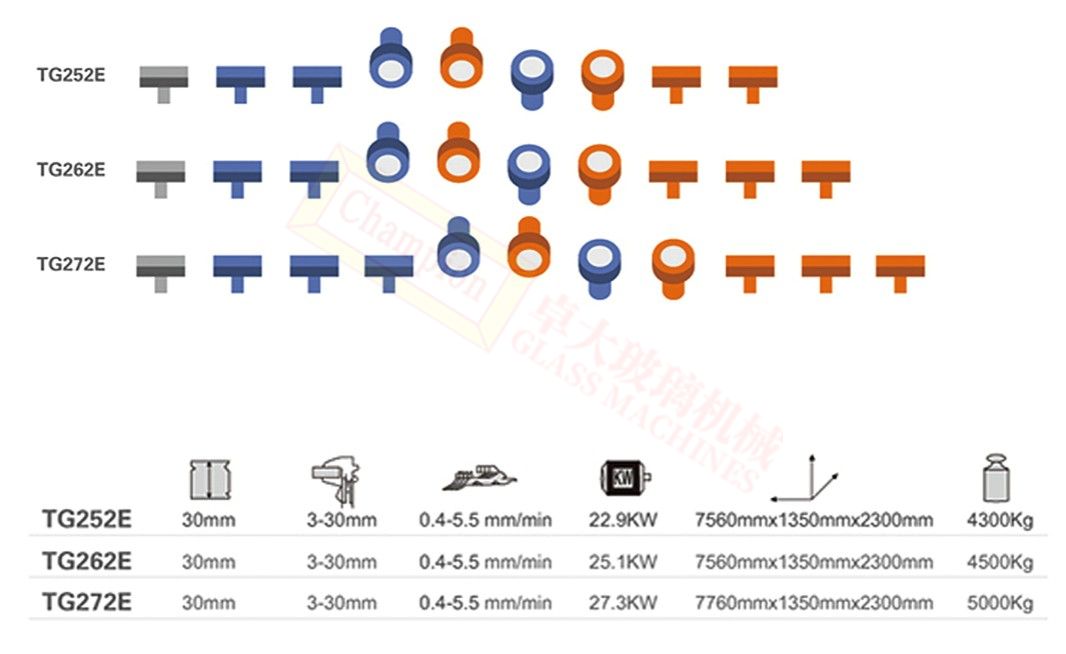

Major Technical Specification
| TG252E | TG262E | TG272E |
| Processing Speed | 0.4 ~ 5.5 m/min | 0.4 ~ 5.5 m/min | 0.4 ~ 5.5 m/min |
| Max.glass processing width | 3000 mm | 3000 mm | 3000 mm |
Min.glass processing width | 30 mm | 30 mm | 30 mm |
| Glass thickness | 3 ~ 30 mm | 3 ~ 30 mm | 3 ~ 30 mm |
| Total power | 22.9 KW | 25.1 KW | 27.3 KW
|
| Overall dimension | 7560*1350*2300(mm | 7560*1350*2300(mm | 7560*1350*2300(mm |
| Weight | 4300 kg | 4500 kg | 5000 kg |
